1.00mm Pitch Connectors for Compact Wire-to-Board Applications

CSG supplies 1.00mm pitch connector solutions for compact PCB interconnection, including wire-to-board, crimp, IDC, housing, terminal and SMT wafer configurations.

Replaces SM10B-SRSS-TB
Replacement for JST SM10B-SRSS-TB, a 1.00 mm pitch SMD right-angle header with 10 circuits, single-row friction-lock construction and tape-and-reel packaging. The substitute uses a UL 94V-0...
Replaces JST SM15B-SHLS-TF
Replacement for JST SM15B-SHLS-TF, a 1.00 mm pitch SMD right-angle header with 15 circuits, single-row configuration and friction-lock retention. The alternative model A1008RS015AA6TTPBA112 is...
Replaces 501568-1507
This 1.00 mm pitch right-angle SMD header is designed as a replacement for Molex 501568-1507. It features 15 circuits, a single-row configuration, inner positive locking, and SMD mounting. The...
A1005(NH)Buckle Alternative NH 1.00mm Crimp Terminal Housing
The A1005(NH) is a compact 1.00mm pitch crimp connector system for space-constrained wire-to-board applications. It includes single-row housings, female crimp terminals and SMT headers, with...
A1007(SSR)Made in China SSR 1.00 IDC Housing Cable
The 1.00mm IDC Housing Cable is a compact IDC connector assembly designed for high-density wire-to-board and cable connection applications. It uses a 1.00mm pitch receptacle housing with friction...
A1008(SHL/SHLD)alternative SHL 1.00mm/SHLD Housing Terminal Wafer
The A1008(SHL/SHLD) alternative is a 1.00 mm pitch replacement connector for SHL/SHLD applications, offering housings, crimp terminals, and SMT headers for compact wire-to-board assemblies and OEM...
A1009(501330)Made in China 501330 1.00 Housing Terminal
A1009 (501330) is a 1.00 mm-pitch connector component for 501330-series applications, with PA66 housing and phosphor copper contacts, suitable for alternative sourcing subject to dimensional and...

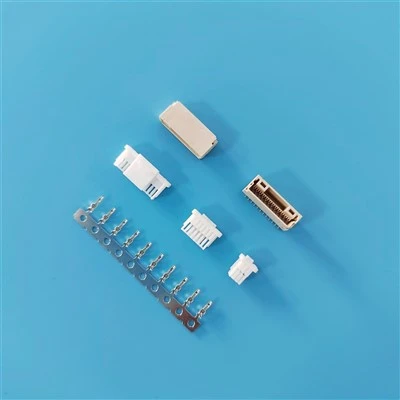

A1010(NSH)alternative NSH 1.00 Housing Terminal Wafer
A1010 is a 1.00 mm-pitch wire-to-board connector system for PCB signal and power connections, offered as an alternative sourcing option for selected NSH-type connectors with matching housings,...

Technical Specifications

Model	Voltage	Temp Range	Contact R	Insulation R
Replaces SM10B-SRSS-TB	50V DC	-40 to +105 °C	≤20 mΩ	≥100 MΩ
Replaces JST SM15B-SHLS-TF	50V DC	-40 to +105 °C	≤20 mΩ	≥100 MΩ
Replaces 501568-1507	100V DC	-25 to +105 °C	≤30 mΩ	≥500 MΩ
A1005(NH) Buckle	50V DC	-25 to +105 °C	≤20 mΩ	≥100 MΩ
A1007(SSR) IDC	50V DC	-40 to +105 °C	≤20 mΩ	≥100 MΩ
A1008(SHL/SHLD)	50V DC	-40 to +105 °C	≤20 mΩ	≥100 MΩ
A1009(501330)	100V DC	-25 to +105 °C	≤30 mΩ	≥500 MΩ
A1010(NSH)	50V DC	-25 to +105 °C	≤30 mΩ	≥100 MΩ

Available 1.00mm Pitch Alternatives

If you are replacing an existing connector, CSG can help evaluate 1.00mm pitch alternatives based on the original part number.

Existing references we cover include:
JST SM10B-SRSS-TB · JST SM15B-SHLS-TF · Molex 501568-1507 · Molex 501330 · NSH / NH / SSR / SHL / SHLD series.

However, "same pitch" does not automatically mean "direct replacement."A correct alternative assessment also requires comparison:

• Pitch & Circuit Count:Confirm the contact spacing and number of circuits are identical.
• Mating Interface & Housing Dimensions:Ensure the mating geometry and overall fit are physically compatible.
• Contact Position & PCB Footprint:Verify pin-out and solder pad layout align with your existing PCB design.
• Terminal Dimensions & Wire Specification:Check that the terminal design and wire gauge match your assembly requirements.
• Electrical Ratings & Temperature Range:Validate current/voltage ratings and operating temperature meet your application needs.
• Locking Structure & Assembly Process:Confirm mechanical retention and assembly method suit your production line.

1.00mm Pitch Connector Selection Guide

01/

Identify the connection type

Determine whether the application requires:

Wire-to-Board → Crimp → IDC → SMT Wafer → FFC/FPC

Different connection methods require different connector structures and assembly processes.

02/

Confirm circuit count

The number of positions directly affects the connector length and PCB layout.

Provide the required circuit count when requesting a quotation so we can recommend the appropriate configuration.

03/

Confirm the wire and cable

For crimp-type products, wire size, conductor construction and insulation diameter are important for terminal compatibility.

04/

Check PCB space

Confirm available PCB width, connector height and mating direction.

For compact equipment, a right-angle configuration may be preferable when vertical PCB height is restricted.

05/

Verify electrical requirements

Rated current and voltage should be evaluated based on the actual application rather than the pitch.

06/

Check the assembly process

Tell us whether the connector will be assembled manually, semi-automatically or through automated production.

Designed for Engineering Replacement Projects

CSG can assess the original connector information based on the existing technical data and determine the appropriate 1.00mm spacing option.

Please provide us with any of the following information:
Original part number, product photo, connector drawing, PCB footprint, 2D/3D CAD file, number of circuits, cable specification, sample or application information.

The more complete the information provided, the more accurate the evaluation of the replacement solution will be.

Engineering Support Before Ordering

A connector should not be selected based on appearance or pitch alone. For project-based purchasing, our technical review focuses on the key interfaces between the connector and your application.

Mechanical Compatibility:

We check critical dimensions: width, height, mating direction, terminal arrangement, and PCB mounting interface.

Electrical Compatibility:

Rated current, voltage, contact resistance, and insulation requirements are reviewed per the intended circuit.

Cable Compatibility:

For wire-to-board products, the terminal must be matched to wire size and cable construction.

Assembly Compatibility:

The connector configuration should fit your PCB assembly process and production equipment.

Replacement Compatibility:

For alternative parts, we compare the original connector's mating and PCB interfaces before approval.

From Sample Evaluation to Mass Production

We support a structured sourcing process to reduce the risk of moving directly from quotation to large-volume purchasing.

Requirement Confirmation

Send the part number, drawing, sample or basic application requirements.

Product Matching

Our team identifies the closest available 1.00mm pitch configuration based on the required electrical, mechanical and assembly parameters.

Quotation

Quotation can be prepared according to the required specification, quantity and packaging method.

Sample Evaluation

Samples can be used for dimensional inspection, mating tests, PCB assembly verification and application testing.

Approval

After the connector meets your engineering requirements, the approved part number and specifications can be confirmed.

Pilot / Trial Order

For new projects, a trial order can help validate assembly yield and production compatibility.

Mass Production

After approval, production quantities and delivery schedules can be arranged according to the confirmed order.

Packaging & Shipping for Orders

Small connectors require packaging that protects terminals, housings, and mating interfaces during international transportation.

Depending on product and order quantity, packaging can be discussed in formats such as:PE bags for bulk components, individual or inner-box packaging, cartons for larger quantities, tape-and-reel for SMT products, customer-specified labels, and batch/lot identification.

Shipping options include:Express delivery for samples, air freight for urgent production, sea freight for larger-volume orders, and other freight solutions based on destination and order size.
